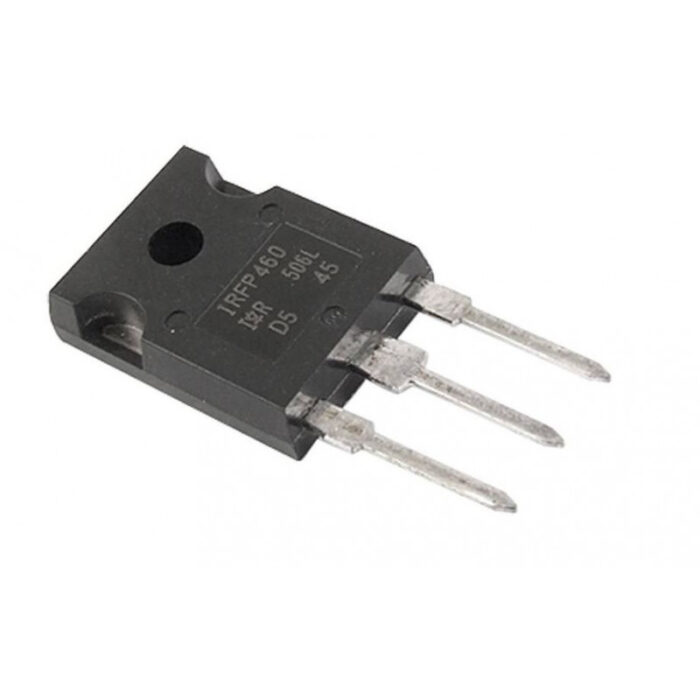

IRFP460 MOSFET – 500V 20A N-Channel Power MOSFET

IRFP460 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency. Features:- • Dynamic dV/dt Rating • Repetitive Avalanche Rated • Isolated Central Mounting Hole • Fast Switching • Ease of Paralleling • Simple Drive Requirements Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 500V Continuous Drain Current (Id) 20A Drain-Source Resistance (Rds On) 0.24Ohms Gate-Source Voltage (Vgs) 30V Gate Charge (Qg) 124 nC Operating Temperature Range -55 – 150°C Power Dissipation (Pd) 280W
