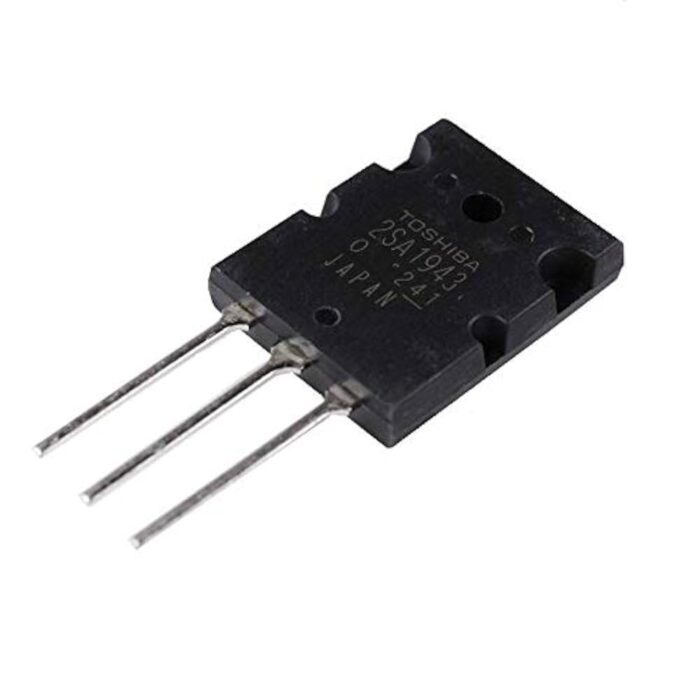

2SA1943 PNP Power Amplifier Transistor 230V 15A TO-3PL Package

2SA1943 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) -230V Collector-Emitter Voltage (VCEO) -230V Emitter-Base Voltage (VEBO) -5V Continuous Collector Current (IC) -15A Base Current (IB) -1.5A Transition Frequency (fT) 30MHz DC Current Gain (hFE) 55-160 Operating Temperature Range -55 – 150°C Power Dissipation (PD) 150W
