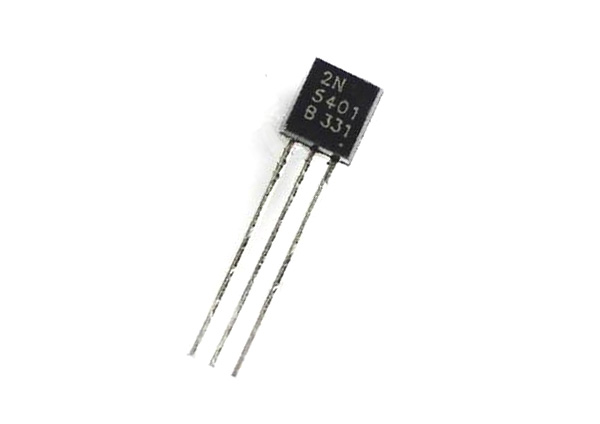

2N5401 PNP Amplifier Transistor 150V 600mA TO-92 Package

2N5401 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits. Features:- • Advanced process technology • Low error voltage • Fast switching speed • Full-voltage operation • High power and current handling capability Detailed Specifications:- Transistor Polarity PNP Collector-Base Voltage (VCBO) 160VDC Collector-Emitter Voltage (VCEO) 150VDC Emitter-Base Voltage (VEBO) 5VDC Continuous Collector Current (IC) 600mA Output Capacitance (Cobo) 6pF Transition Frequency (fT) 100-300MHz DC Current Gain (hFE) 60-240 Operating Temperature Range -55 – 150°C Power Dissipation (PD) 1.5W
