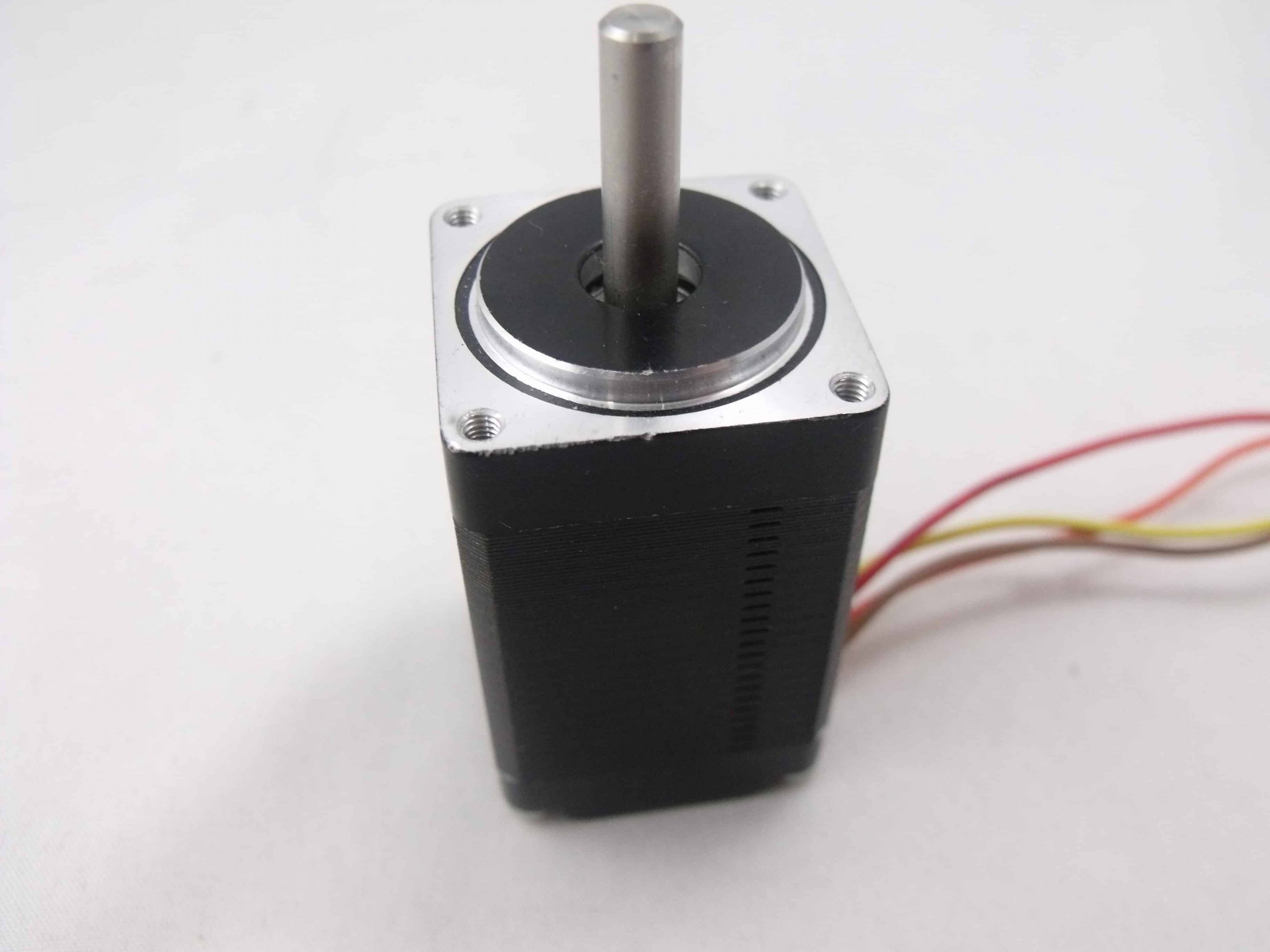

Nema 11 51mm Bipolar Stepper Motor 0.67A 12Ncm/17oz.in 1.8deg Nema11

Description: This hybrid bipolar stepper motor with 1.8 step angle (200 steps/revolution). Each phase draws 670 mA at 6.2 V, allowing for a holding torque of 12Ncm(17oz-in). Planetary Geared Stepper is available for this model. Specifications: Stepper Motor: Bipolar 4 Lead Wires Step Angle: 1.8 Holding Torque: 100mN.m(13.5oz.in) Rated Current / Phase: 0.67A Phase Resistance: 9.2ohms Recommended Voltage: 12-24V Inductance: 7mH 20%(1KHz) Length: 51mm Wiring colours: A is Red, C is Brown, B is Yellow, D is Orange What you will receive: 1 x Nema11 Stepper Motor
