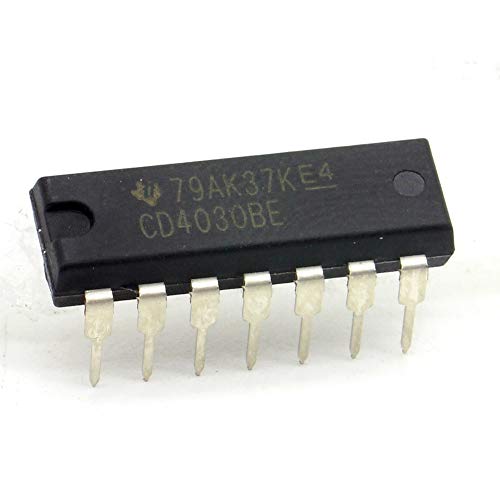

CD4030 Quad 2-Input Exclusive OR (EXOR) Gate IC DIP

CD4030 types consist of four independent Exclusive-OR gates. THe CD4030 provides the system designer with a means for direct implementation of the Exclusive-OR function. The CD4030 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes). Features:- Medium-speed operation—tPHL, tPLH = 65 ns (typ.) at VDD = 10 V, CL = 50 pF 100% tested for quiescent current at 20 V Standardized, symmetrical output characteristics 5-V, 10-V, and 15-V parametric ratings Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA     at 18 V and 25°C Noise margin (over full package-temperature range) = 1 V at VDD = 5 V 2 V at VDD = 10 V 2.5 V at VDD = 15 V
