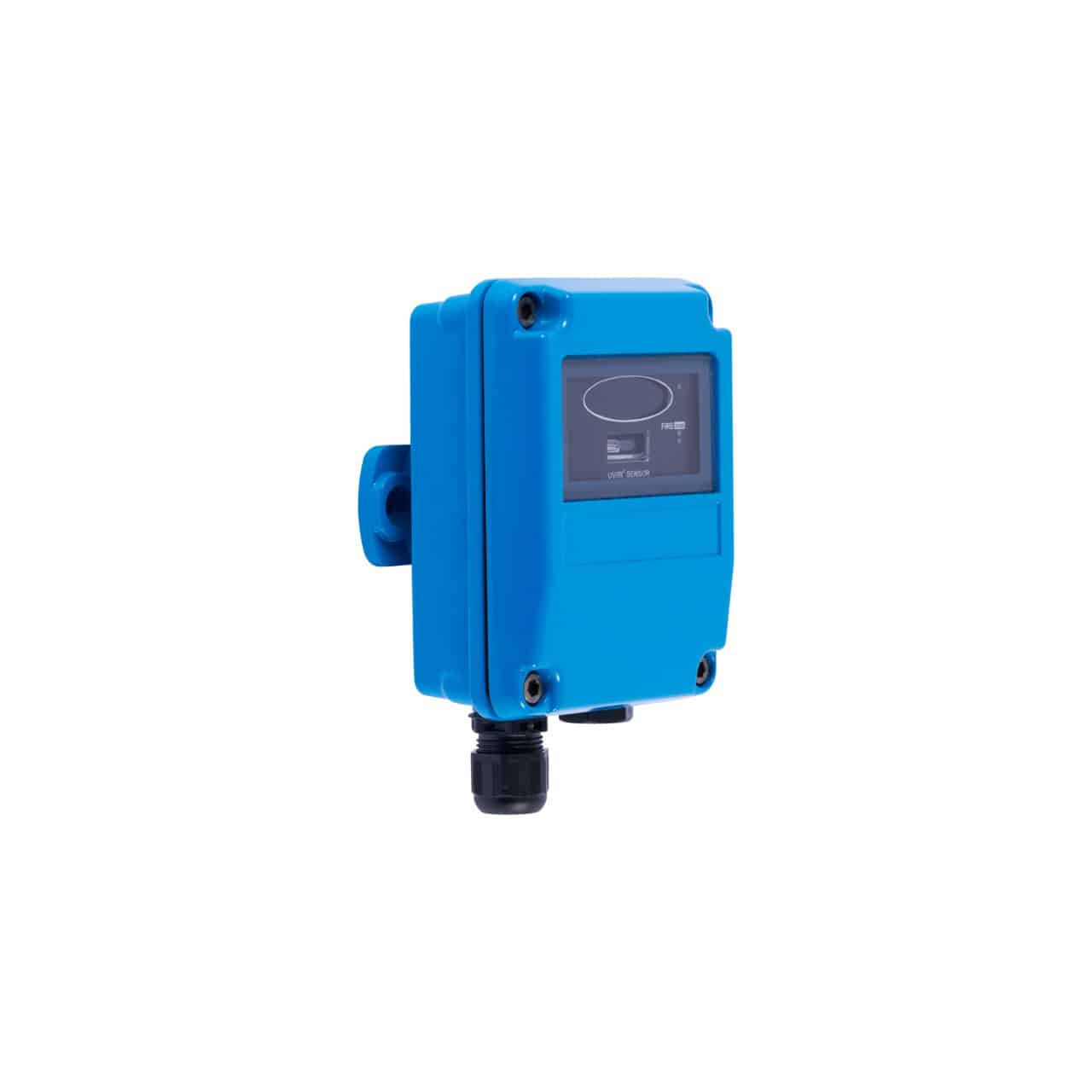

FFE Talentum Flame Detector UV/IR2 16591

Description The Talentum® Flame Detector UV/IR2 is designed to protect areas where open fires may be expected and detects most flames from hydrocarbon fires with 4.3 µm  missions through to invisible fires such as hydrogen.  The Flame Detector is sensitive to flickering, low frequency (1-15 Hz) infra-red radiation along with ultra-violet emitted by flames during combustion. It has a UV sensor and two IR sensors which respond to different wavelengths of both the ultra-violet and the infra-red spectrum. The signals  from these sensors are processed by the detector and checked for characteristics of a flame. The simultaneous detection of both the UV and the IR light by the sensors will  signal an alarm. False alarms from flickering sunlight, arc welding and lightning are eliminated by a combination of UV and dual IR signal processing techniques.  The  UV/IR2 Flame Detector has selectable output options of relay contacts of 4 to 20 mA signal as standard.   Key Features Highest immunity to false sources Suitable for indoor and outdoor areas Detects invisible flames from fuels such as Hydrogen and other inorganic fuels Selectable response speed Optical self-test Low power consumption Approved to EN54-10:2002 Applications Aircraft Hangars Engine Rooms Engine Test Facilities Generators High Voltage Equipment Nuclear Industry Power Plants Storage Tanks Made in United Kingdom
