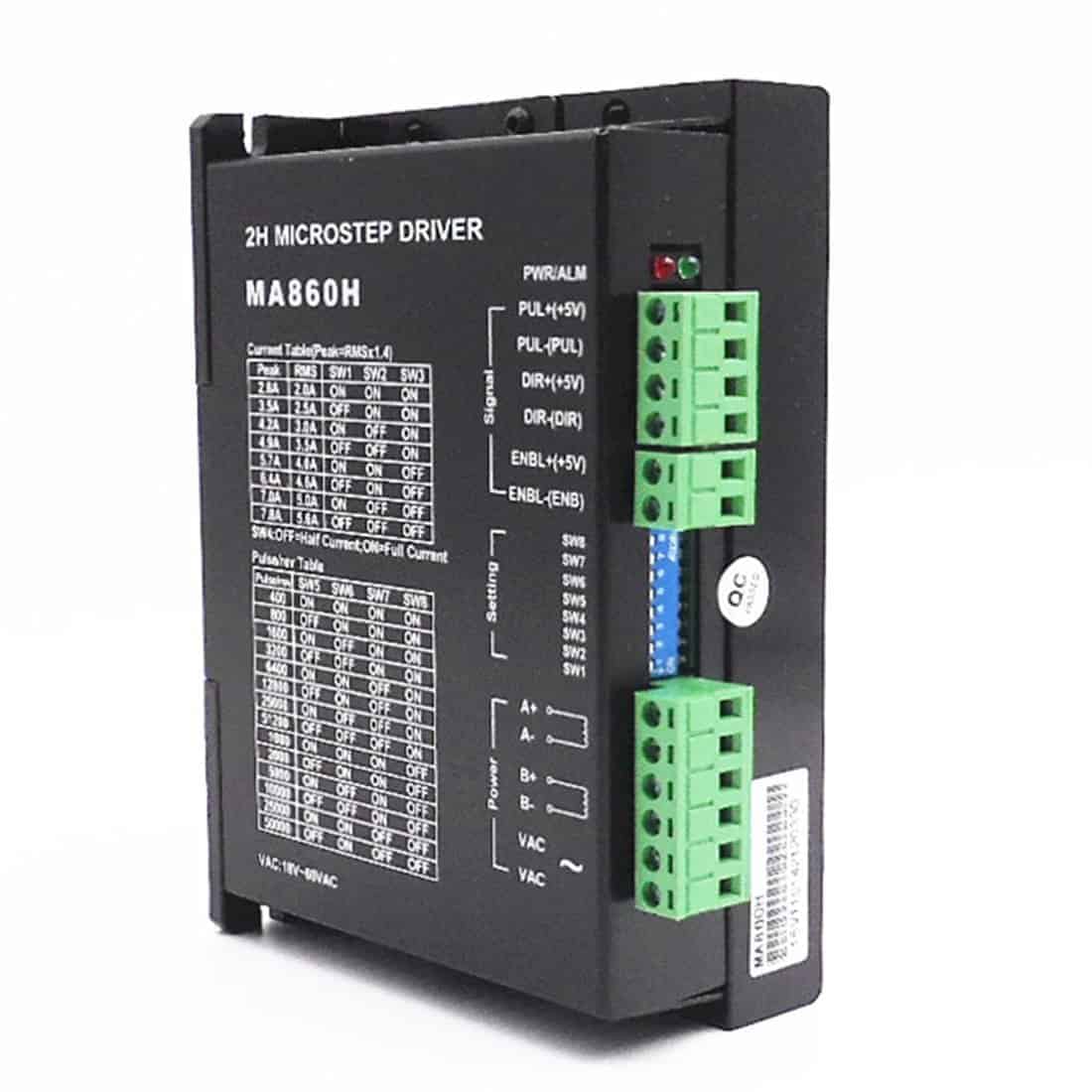

Descriptions: MA860H CNC Stepper Driver Board Controller 2.6-7.2A AC18-80V DC24-110V 2/4 Phase The MA860H Stepper Driver is a high performance microstepping driver based on pure-sinusoidal current control technology. With this technology and the self-adjustment technology (self-adjust current control parameters) for different motors, the drive motors can run with less noise, lower heating, smoother movement and have better performances at higher speed than most of the drivers in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors, so the Nema23, Nema34 and Nema42 stepper motors with a 2.6A-7.2A current will be suitable. Features: High performance, cost-effective Supply voltage from “18V AC to 80V AC” or “24V DC to 110V DC” Output current from 2.6A to 7.2A Self-adjustment technology, full to half current self-adjustment when motors from work to standstill via switching off SW4 Pure-sinusoidal current control technology Pulse input frequency up to 300 KHz TTL compatible and optically isolated input Automatic half-current reduction as long as switching off SW4 when motors stop 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev Suitable for 2-phase and 4-phase motors Support PUL/DIR and CW/CCW modes Short-voltage, over-voltage, over-current and short-circuit protection, protect the PC, motors, driver etc from being damaged External Fan Design to avoid overheat Applications: Suitable for any medium-and-big size automatic equipment with CNC controller, such as X-Y tables, labeling machines, laser cutters, engraving machines, and pick-place devices Suitable for a wide range of stepping motors, from NEMA size 23 to 42 For processing various pattern mould For advising, such as brand, architechture mould, badge, nameplate, display boards, doorplate, furniture decoration, etc. For carving portrait, scenery, handwriting, sealing, etc. DIP-Switch Settings I. DIP-Switch Instructions II. DIP-Switch Settings Diagram Dynamic current setting Peak Current AVG Current SW1 SW2 SW3 2.6A 1.8A ON ON ON 3.2A 2.3A OFF ON ON 3.8A 2.7A ON OFF ON 4.4A 3.1A OFF OFF ON 5.1A 3.6A ON ON OFF 5.8A 4.1A OFF ON OFF 6.5A 4.6A ON OFF OFF 7.2A 5.A OFF OFF OFF Auto Half-Current-Reduction Setting SW4 ON OFF Work-Full Standstill-Full Work-Full Standstill-Full Mirostep Resoltion Selection Mirostep Step/Rev.(1.8 Motor) SW5 SW6 SW7 SW8 2 400 ON ON ON ON 4 800 ON OFF ON ON 8 1600 ON ON OFF ON 16 3200 ON OFF OFF ON 32 6400 ON ON ON OFF 64 12800 ON OFF ON OFF 128 25600 ON ON OFF OFF 256 51200 ON OFF OFF OFF 5 1000 OFF ON ON ON 10 2000 OFF OFF ON ON 25 5000 OFF ON OFF ON 50 10000 OFF OFF OFF ON 125 25000 OFF ON ON OFF 250 50000 OFF OFF ON OFF Power Supply Recommendation: 36V AC or 48V DC power supply for Nema 23/24 stepper motors 48V AC or 48~80V DC power supply for Nema 34 stepper motors 60V AC or 80~110V DC power supply for Nema 42 stepper motors Electrical Specification (Tj=25°C/77ºF) Parameter MA860H Min Typical Max Unit Output Current 2.6 – 7.2(5.1MS) A Supply Voltage 18 60 80 VDC Logic Signal Current 7 10 16 mA Pulse Input Frequency 0 – 300 KHz Isolation Resistance 500 M? Operationg Environment & Other Specifications Cooling Natural Cooling or Fan Forced cooling Operating Environment Environment Avoid dust, oil fog, corrosive gas Ambient Temperature 0°C ~ 50°C (32ºF ~ 122ºF) Humidity 40%RH ~ 90%RH Operating Temperature 70°C (158ºF) Max Vibration 5.9m/s 2 MAX Storage Temperature -20°C ~ 65°C (-4ºF ~ 149ºF) Total Weight 690G What you will receive: 1 x MA860H CNC Stepper Driver Board Controller
