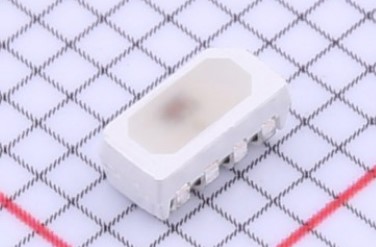

WS2812B-4020 RGB LED

WS2812B-4020 is an 12mA RGB SMD,4x2mm Light Emitting Diodes (LED) ROHS Features: IC control circuit with led Point lights share a single power source. Control circuit and RGB chip integrated in a 4020 package, a complete external control pixel is formed. Built-in signal shaping circuit, any pixel receives the signal after waveform shaping and then outputs it to ensure that the line waveform distortion will not accumulate. Built-in power-on reset and power-down reset circuits. Three primary colors of each pixel can be realized256level brightness display, complete16777216Full true color display of all colors. Port scan frequency2KHz. Serial cascading interface, which can receive and decode data through one signal line. When the refresh rate30When frames per second, the number of cascades is not less than1024point. Data transmission speed up to800Kbps. The color of the light is highly consistent, and the cost performance is high. Having a reverse power supply will not be damaged. The periphery does not require any electronic components including capacitors. Download Data Sheet for WS2812B-4020   SKU: LC-96 Category: LEDs Tag: WS2812B-4020 RGB LED
